When the ABS warning light comes on, it’s easy to assume the ABS module has failed. But that isn’t always the case. The anti-lock braking system (ABS) module monitors wheel-speed data and helps control brake pressure to prevent the wheels from locking during hard braking.
An illuminated ABS light can be triggered by several problems besides a faulty module. A bad wheel-speed sensor, damaged wiring or connectors, a blown fuse, low system voltage, or a problem within the hydraulic system can all cause ABS-related warning lights and trouble codes.
That’s why a proper diagnosis matters before replacing the module, as it can be an expensive repair. In this guide, you’ll learn how to test an ABS module step by step, check the related electrical and sensor inputs, and determine whether the module itself is actually the source of the problem.
What Does an ABS Module Do?
The ABS module is the control center of your vehicle’s anti-lock braking system. It continuously receives information from the wheel-speed sensors to monitor how fast each wheel is rotating. If the system detects that one or more wheels are about to lock during braking, the module works with the ABS hydraulic unit to adjust brake pressure at the affected wheels.
On many modern vehicles, the ABS module also shares wheel-speed and braking information with the traction control and electronic stability control systems. Because these systems are connected, a single ABS-related fault can sometimes trigger the ABS, traction control, and stability control warning lights simultaneously.
However, a warning light doesn’t confirm that the ABS module itself has failed. The module relies on sensors, wiring, electrical power, and other components to operate correctly, so these areas should also be checked during diagnosis.
Symptoms of a Bad ABS Module
A failing ABS module can cause several warning signs, but many of these symptoms can also be caused by wheel-speed sensors, damaged wiring, or other ABS components. For that reason, symptoms should be treated as diagnostic clues rather than proof that the module needs replacement.
ABS Warning Light Stays On
A common sign of an ABS-related problem is an ABS warning light that remains illuminated after the vehicle starts. The system may have detected a fault and stored a diagnostic trouble code (DTC). An ABS-capable scan tool can help identify which circuit or component needs further testing.
ABS and Traction Control Lights Come On Together
The ABS and traction control systems often share wheel-speed data and other information. A fault affecting the ABS can therefore illuminate both warning lights. This doesn’t necessarily mean both systems have separate problems.
ABS Does Not Activate When Needed
If the ABS detects a serious fault, it may turn off anti-lock braking assistance. Normal braking may still be available, but the wheels may be more likely to lock during hard braking or on slippery surfaces.
Unexpected ABS Activation
ABS that activates during normal or low-speed braking can indicate incorrect wheel-speed information. A damaged sensor, tone ring, wiring issue, or other fault may cause the module to receive inaccurate data, so it shouldn’t be replaced without further testing.
No Communication With the ABS Module
If an ABS-capable scan tool cannot communicate with the module, the module itself may be faulty. However, first check its power supply, grounds, wiring, connectors, and vehicle communication network. A loss of power or communication can make a working module appear defective.
What You Need to Test an ABS Module
Before testing an ABS module, gather the right tools to diagnose the system accurately rather than guessing which part has failed. Here’s what you’ll typically need:
- OBD-II/ABS-capable scan tool: Used to read ABS trouble codes, view live data, and perform supported diagnostic tests.
- Digital multimeter: Helps check voltage, current, ground, and other electrical parameters in circuits.
- Vehicle wiring diagram or service information: Provides the correct connector pinouts, circuit locations, and manufacturer specifications.
- Basic hand tools: Useful for accessing the ABS module, fuse box, connectors, and related components.
- Battery voltage tester: Helpful for quickly checking battery and charging system voltages.
- Wheel chocks and safety equipment: Help keep the vehicle secure while performing checks.
Important: A basic OBD-II reader that only reads engine codes may not be able to access the ABS. Make sure your scan tool supports ABS diagnostics for your vehicle’s specific year, make, and model before you begin.
How to Test an ABS Module Step by Step
Before concluding that the ABS module is faulty, test the system in a logical order. Start with the battery and basic electrical checks, then move on to ABS trouble codes, sensor data, wiring, and module communication. This approach can help you avoid replacing an expensive ABS module when the problem is elsewhere.

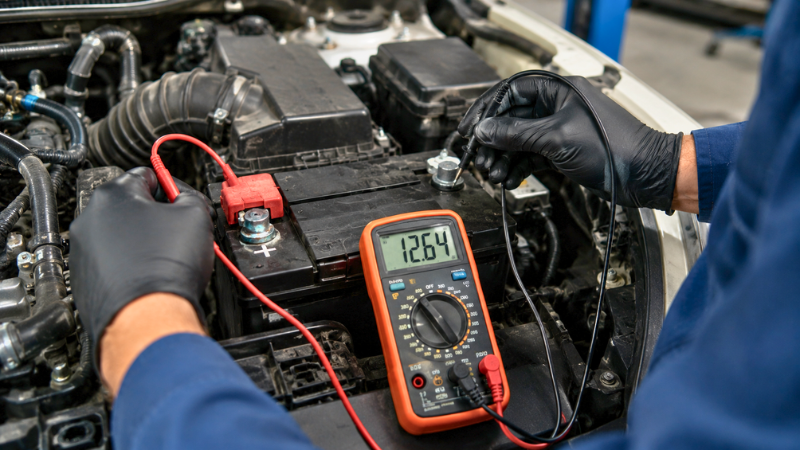

Step 1: Check the Battery Voltage
Start by checking the vehicle’s battery voltage. The ABS module depends on a stable electrical supply, and low system voltage can trigger warning lights, communication problems, or ABS-related trouble codes that may appear to be a module failure.
With the engine off, use a digital multimeter or battery tester to measure voltage directly across the battery terminals. A fully charged 12-volt battery typically reads around 12.6 volts, though the exact reading can vary with battery condition and temperature.
With the engine running, the voltage is typically higher because the charging system is operating. Compare your readings with the specifications for your specific vehicle.
If the battery voltage is unusually low or unstable, address the battery or charging system problem first. Then recheck the ABS before continuing with module diagnosis.

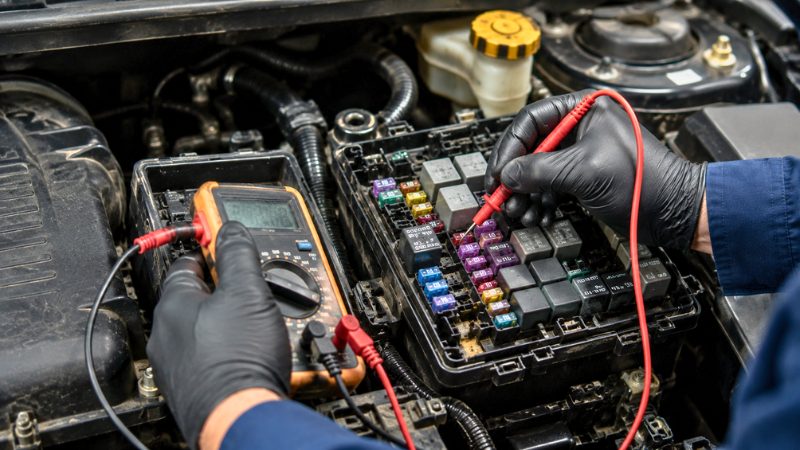

Step 2: Inspect the ABS Fuse and Relay
Before testing the ABS module itself, check the fuses and relays that supply power to the ABS. A blown fuse or faulty power-supply circuit can prevent the module from operating or communicating with a scan tool, making it appear as though the module has failed.
Use your vehicle’s owner’s manual, fuse-box diagram, or service information to locate the ABS-related fuse and relay. Depending on the vehicle, there may be more than one fuse associated with the ABS module or hydraulic pump.
Inspect the fuse for damage and test it with a multimeter when necessary. If you find a blown fuse, don’t automatically assume replacing it has solved the problem. A fuse that blows again may indicate a short circuit, damaged wiring, a faulty pump motor, or another electrical issue.
Also verify the relay according to the manufacturer’s recommended procedure. Once proper power delivery is confirmed, continue with an ABS scan.

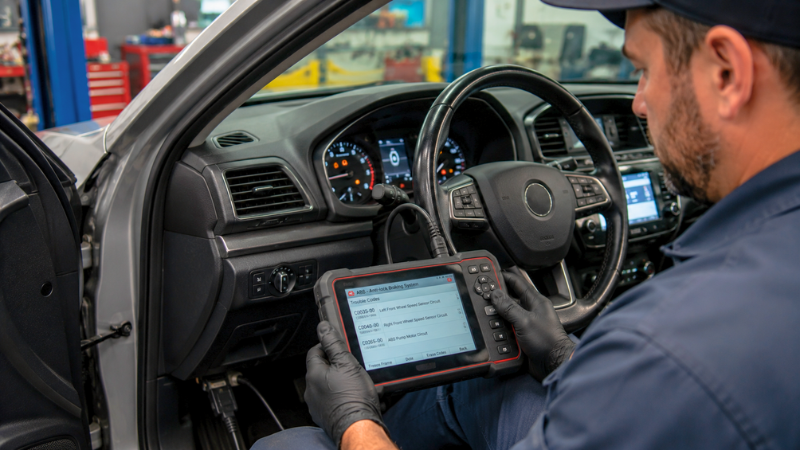

Step 3: Scan the ABS System for Trouble Codes
Once the battery, fuses, and basic power supply have been checked, connect an ABS-capable scan tool to the vehicle’s OBD-II diagnostic port. Turn the ignition on and select the ABS or brake control system from the scanner menu.
Read all stored, pending, and history diagnostic trouble codes (DTCs) if your scan tool provides them. Write down the codes before clearing anything. These codes can point you toward a wheel-speed sensor circuit, pump motor, solenoid, communication circuit, power supply, or an internal module-related fault.
Don’t replace the ABS module based on a trouble code alone. A code identifies the system or circuit where a problem was detected, but it doesn’t always identify the failed component.
For the most accurate diagnosis, look up each code using service information for your vehicle’s year, make, and model. After recording the codes, use them to determine which circuits or components to test next.
Step 4: Check Live Wheel-Speed Sensor Data

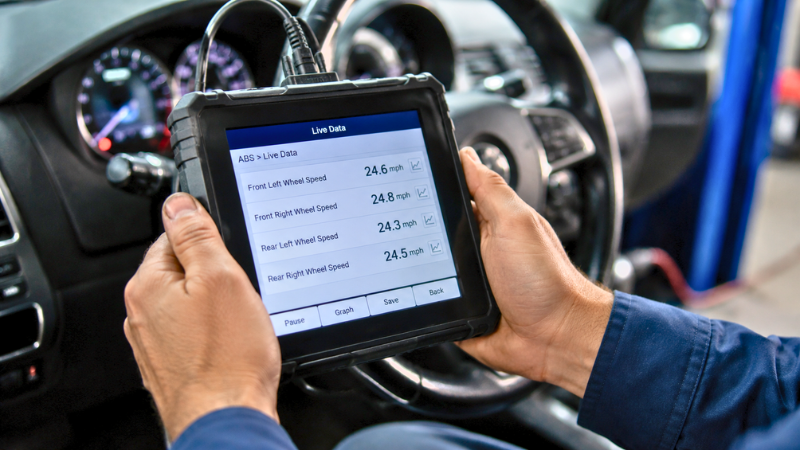

Next, use your ABS-capable scan tool to view live wheel-speed sensor data. This is an important step because a faulty wheel-speed sensor or its wiring can cause ABS warning lights and symptoms that may be mistaken for a bad ABS module.
When operating the vehicle only under safe conditions, monitor the speed reading from each wheel. At a steady vehicle speed, the readings should generally remain consistent with one another. Look for one wheel that reads zero, suddenly drops out, jumps unexpectedly, or consistently differs from the others.
An abnormal reading does not automatically mean the ABS module is faulty. The problem may be a damaged wheel-speed sensor, a wiring or connector issue, an excessive sensor gap, a damaged tone/reluctor ring, or a wheel-bearing-related problem, depending on the vehicle design.
If one wheel shows abnormal data, diagnose the corresponding sensor circuit per the manufacturer’s service procedure before proceeding with ABS module replacement.

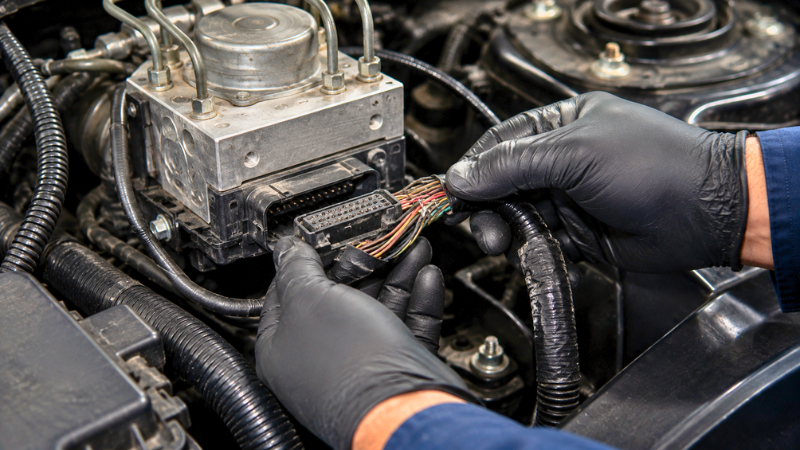

Step 5: Inspect the ABS Module Wiring and Connectors
If the wheel-speed sensor data looks normal, inspect the wiring and electrical connectors at the ABS module. A poor connection can interrupt power, ground, sensor signals, or communication, creating symptoms that resemble an internal module failure.
Locate the ABS module using the service information for your specific vehicle. Before disconnecting anything, follow the manufacturer’s recommended procedure. Carefully inspect the wiring harness and connector for loose connections, corrosion, moisture, damaged insulation, broken wires, or bent and damaged terminals.
Pay particular attention to wiring near areas exposed to water, road debris, heat, or previous repair work. Even a small amount of corrosion or a loose terminal can create an intermittent ABS fault.
If you find damaged wiring or a poor connection, repair it using the appropriate service procedure and then scan the ABS again. Avoid probing unidentified connector terminals, as incorrect testing methods can damage sensitive electronic circuits.

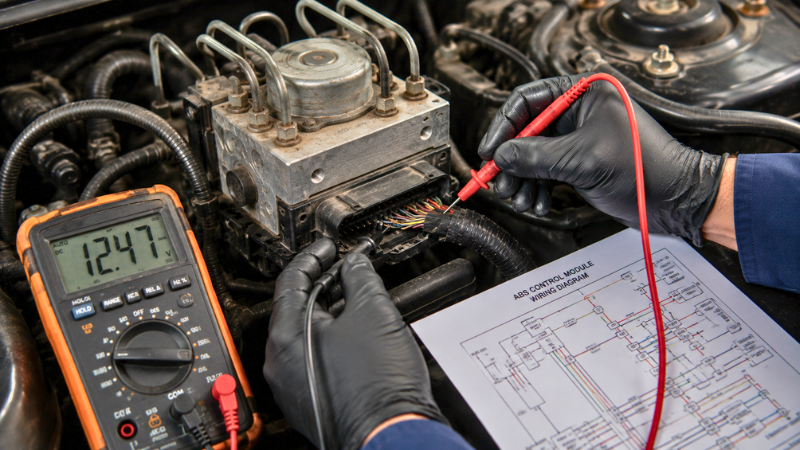

Step 6: Verify Power and Ground at the ABS Module
If the wiring and connectors appear to be in good condition, verify that the ABS module is receiving the correct power and ground. A module without proper voltage or a reliable ground may stop communicating or set fault codes even when the module itself is still functional.
Use the wiring diagram for your specific year, make, and model to identify the correct ABS module power and ground circuits. With a digital multimeter, check the specified terminals according to the manufacturer’s diagnostic procedure.
The power circuits should show the voltage specified in the service information. Ground circuits should also be tested for a proper connection rather than judged by appearance alone.
If power or ground is missing, trace that circuit back through the related fuse, relay, connector, wiring, or ground point before condemning the ABS module.
Avoid guessing at connector pins or applying voltage to unidentified terminals. ABS module pinouts vary between vehicles, and testing the wrong terminal can damage sensitive electronics.

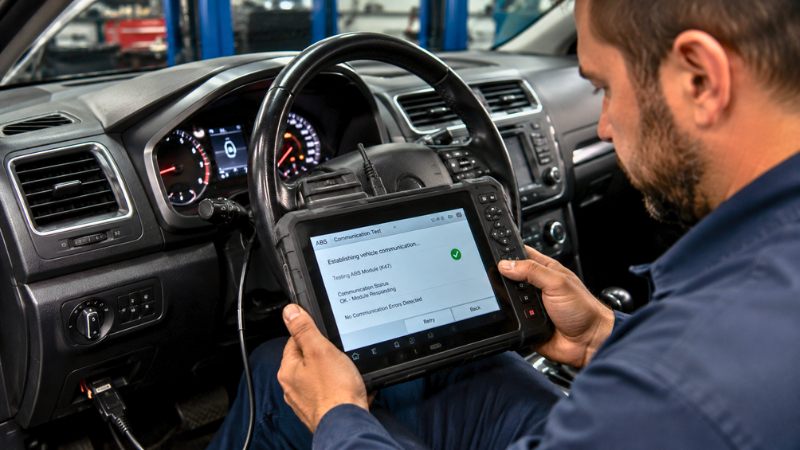

Step 7: Check Communication With the ABS Module
Next, confirm whether your ABS-capable scan tool can communicate with the ABS control module. If the scanner can access other vehicle modules but repeatedly shows “No Communication” for the ABS, further diagnosis is needed.
A no-communication condition does not automatically confirm a bad ABS module. The same problem can occur if the module has lost power or ground, a connector is damaged, or there is a fault in the vehicle’s communication network.
First, confirm the power and ground checks from the previous step. Then use the correct wiring diagram and manufacturer service information to inspect the applicable communication circuits, such as the CAN bus on many modern vehicles.
If power, ground, connectors, and communication wiring all test within specification, but the ABS module still cannot communicate, the module becomes a stronger suspect. At that point, follow the manufacturer’s diagnostic procedure before deciding to repair or replace it.
Step 8: Perform Scan-Tool Active Tests When Supported

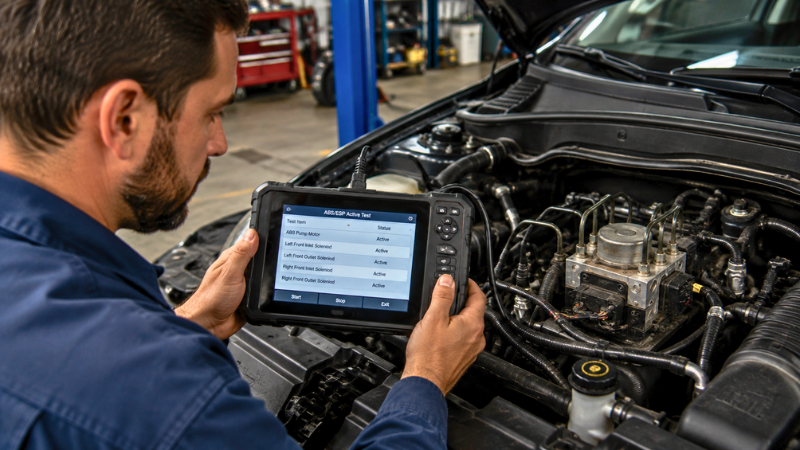

If your scan tool supports bidirectional controls, you may be able to command certain ABS components on and off for further diagnosis. Depending on the vehicle and scan tool, these active tests may include operating the ABS pump motor or individual hydraulic solenoids.
Connect the ABS-capable scan tool, select the ABS or brake control module, and look for a menu labeled Active Test, Functional Test, Actuation Test, or Bidirectional Control. Follow the scanner prompts and the vehicle manufacturer’s service procedure carefully.
During the test, verify that the commanded component responds as expected and watch for any related trouble codes or abnormal behavior. A component that fails to respond does not necessarily mean the ABS module is faulty; wiring, the power supply, the hydraulic control unit, or the commanded component may also be responsible.
Not every vehicle or scan tool supports the same active tests. If your scanner does not provide this function, do not attempt to activate ABS circuits manually. Use the manufacturer-recommended diagnostic procedure instead.
Can You Test an ABS Module With a Multimeter?
Yes, a digital multimeter can help diagnose an ABS module, but it cannot fully test everything happening inside the module. A multimeter is most useful for determining whether the ABS module is receiving the electrical power and ground it needs to operate correctly.
Using the proper wiring diagram for your vehicle, you can use a multimeter to check battery voltage, module power supply, ground circuits, and certain wiring circuits. Continuity or resistance tests may also be appropriate for specific circuits when the manufacturer’s service procedure calls for them.
However, a multimeter alone cannot reliably verify the module’s internal processor, communication functions, or complete hydraulic control operation. Those areas typically require an ABS-capable scan tool and vehicle-specific diagnostic procedures.
For this reason, use the multimeter primarily to rule out external electrical problems. If power, ground, wiring, sensors, and related circuits test correctly but module-related faults remain, further scan-tool testing or professional diagnosis may be necessary before replacing the ABS module.

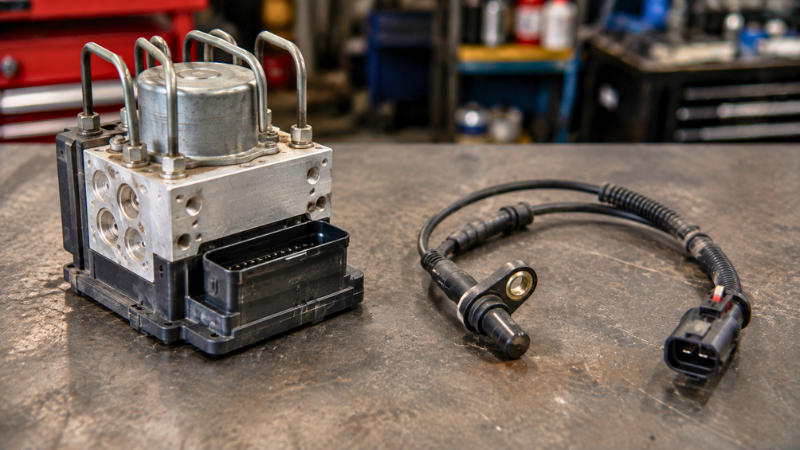

ABS Module vs. Wheel-Speed Sensor: How to Tell the Difference
A bad wheel-speed sensor can produce symptoms that look similar to an ABS module failure, so it’s important to separate the two before replacing parts. The best clues usually come from ABS trouble codes, live wheel-speed data, and electrical testing.
| Diagnostic Clue | Wheel-Speed Sensor/Wiring | ABS Module |
| One wheel shows an abnormal or missing speed reading | More likely | Less likely |
| Sensor-specific ABS trouble code | More likely | Possible |
| ABS module will not communicate with the scan tool | Less likely | Possible |
| Correct power and ground, but no module communication | Less likely | More suspicious |
| Multiple unrelated ABS circuit codes | Possible | Module or wiring needs further diagnosis |
For example, if three wheels display consistent live-speed data while one repeatedly drops to zero, start by inspecting that wheel’s sensor, wiring, connector, and tone/reluctor ring.
On the other hand, if the ABS module has the correct power and ground but still cannot communicate with a compatible scan tool, the module becomes a stronger suspect.
These are diagnostic clues, not guarantees. Always follow the manufacturer’s testing procedures for your specific year, make, and model before replacing an ABS module or wheel-speed sensor.
Common ABS Module Testing Mistakes
ABS diagnosis can quickly become expensive if you replace parts before confirming the actual cause. Avoid these common mistakes when testing an ABS module:
- Replacing the module because the ABS light is on: The warning light can be triggered by sensor issues, wiring problems, low voltage, or other ABS faults.
- Ignoring battery voltage: A weak battery or a charging system problem can cause ABS warning lights and communication issues.
- Skipping fuse and power checks: A blown fuse or loss of power can make a working ABS module appear dead.
- Clearing codes too early: Record all ABS trouble codes before erasing them so you don’t lose useful diagnostic information.
- Ignoring live wheel-speed data: Comparing individual wheel speeds can quickly reveal a sensor or related circuit problem.
- Replacing parts based only on a DTC: A trouble code identifies where the system detected a fault, not necessarily which component needs replacement.
- Using generic specifications: ABS circuits and testing procedures vary by vehicle. Always use service information for the specific year, make, and model.
When Should You Repair or Replace the ABS Module?
Consider repairing or replacing the ABS module only after other likely causes have been properly ruled out. Before condemning the module, confirm that it has the correct power and ground, that its wiring and connectors are in good condition, and that the relevant wheel-speed sensors and related circuits are operating as specified.
An ABS module becomes a stronger suspect when module-related trouble codes persist, communication repeatedly fails despite verified power, ground, and network wiring, or manufacturer diagnostic procedures indicate an internal control module fault.
Replacement is not always a simple plug-and-play repair. Depending on the vehicle, a new or remanufactured ABS module may require programming, coding, initialization, or calibration before the system operates correctly. If the hydraulic control unit is opened or replaced, a scan-tool-assisted ABS bleeding procedure may also be required.
Always check the service information for your specific year, make, and model before choosing repair or replacement.
Can You Drive With a Bad ABS Module?
In many vehicles, the regular braking system may still work when the ABS module has a fault. However, important safety features such as anti-lock braking, traction control, and electronic stability control may be limited or disabled.
Without a functioning ABS, the wheels are more likely to lock during hard braking, especially on wet, snowy, icy, or other low-traction surfaces. This can reduce your ability to maintain steering control during an emergency stop.
An illuminated ABS warning light should therefore be diagnosed as soon as practical rather than ignored. Check your owner’s manual for vehicle-specific warning-light information.
If the red brake warning light comes on, the brake pedal feels different, braking performance changes, or you notice another braking-system problem, avoid driving until the vehicle has been properly inspected. When in doubt, have the ABS and braking system diagnosed by a qualified technician.
Frequently Asked Questions About Testing an ABS Module
How Do I Know if My ABS Module Is Bad?
Common clues include an ABS warning light, multiple ABS-related trouble codes, loss of communication with the module, or ABS functions that do not operate correctly. However, confirm the module’s power, ground, wiring, sensors, and communication circuits before replacing it.
Can AutoZone or Another Parts Store Test an ABS Module?
Some auto parts stores may offer code scanning, but the equipment and services available vary by location. A basic code scan also may not be enough to confirm an internal ABS module failure. Complete diagnosis may require an ABS-capable scan tool and electrical testing.
Can a Bad Wheel-Speed Sensor Look Like a Bad ABS Module?
Yes. A faulty wheel-speed sensor, damaged wiring, a faulty connector, or a damaged tone ring can trigger the ABS light and affect ABS operation. Checking trouble codes and live wheel-speed data can help identify the source.
Can a Bad Battery Cause the ABS Light to Come On?
Yes. Low or unstable system voltage can cause ABS warning lights, communication problems, and stored fault codes. Check the battery and charging system voltage before diagnosing the module itself.
Can I Test an ABS Module Without a Scan Tool?
You can perform basic checks, such as inspecting fuses, wiring, connectors, and power and ground connections. However, an ABS-capable scan tool is usually needed to read ABS codes, monitor live data, and perform supported functional tests.
Does a Replacement ABS Module Need Programming?
It depends on the vehicle. Some replacement ABS modules require programming, coding, initialization, or calibration. Always check the service information for your specific year, make, and model.
Will Disconnecting the Battery Reset the ABS Light?
Not necessarily. Disconnecting the battery does not repair the fault that caused the warning light to come on. Even if the light temporarily turns off, it may return when the ABS detects the problem again. Diagnose and repair the underlying fault instead of using a battery disconnect as a fix.
Final Takeaway
Testing an ABS module is mostly about ruling out other problems before deciding the module itself has failed. An ABS warning light alone is not enough to justify replacing an expensive control module.
For an efficient diagnosis, follow a logical order: check the battery → inspect ABS fuses and relays → scan ABS trouble codes → review live wheel-speed data → inspect wiring and connectors → verify module power and ground → check communication → perform supported active tests.
If the sensors, wiring, power supply, grounds, and communication circuits all meet the manufacturer’s specifications but module-related problems remain, the ABS module becomes a much stronger suspect.
Most importantly, avoid replacing parts based on symptoms or trouble codes alone. Use vehicle-specific service information and confirm the fault whenever possible. If the diagnosis requires advanced electrical or hydraulic testing, having a qualified technician inspect the ABS can prevent unnecessary repairs and help ensure the braking system operates correctly.
