EVAP Leak Symptoms: Signs, Causes, Fixes & Repair Cost

An EVAP (Evaporative Emission Control) system leak is one of the most common reasons a vehicle’s check engine light comes on. While it may not seem like a serious issue at first, an EVAP leak can allow harmful fuel vapors to escape into the atmosphere, reduce your vehicle’s emissions efficiency, and even lead to failed emissions tests. In some cases, it may also cause noticeable drivability issues, depending on the severity of the leak and the affected component.

The EVAP system is designed to capture gasoline vapors from the fuel tank and route them back into the engine to be burned during combustion instead of releasing them into the air. Over time, components such as the gas cap, purge valve, vent valve, charcoal canister, or EVAP hoses can wear out or become damaged, causing the system to leak.

In this guide, you’ll learn the most common EVAP leak symptoms, the underlying causes, how mechanics diagnose the problem, available repair options, average repair costs, and whether it’s safe to continue driving with an EVAP leak. By understanding these warning signs early, you can prevent more expensive repairs and keep your vehicle running efficiently.

What Is an EVAP Leak?

The Evaporative Emission Control (EVAP) system is an essential part of your vehicle’s emissions control system. Its primary job is to prevent gasoline vapors from escaping the fuel tank and entering the atmosphere. Instead of allowing these vapors to leak into the air, the EVAP system captures and stores them until the engine can safely burn them during normal combustion.

Modern vehicles rely on a sealed EVAP system that constantly monitors for leaks. Even a small crack in a hose or a loose gas cap can trigger the check engine light and store an EVAP-related diagnostic trouble code. While these leaks rarely create an immediate safety hazard, they should not be ignored because they can lead to emissions test failures, reduced fuel system efficiency, and more costly repairs if left unresolved.

How the EVAP System Works

When gasoline sits in the fuel tank, it naturally evaporates and creates fuel vapors. Rather than releasing these vapors into the atmosphere, the EVAP system directs them to a charcoal canister, where they are temporarily stored. Under the right driving conditions, the engine control module (ECM) opens the purge valve, allowing the stored vapors to flow into the engine intake manifold, where they are burned as part of the normal combustion process.

The system also performs self-tests to ensure it remains completely sealed. If the ECM detects that pressure cannot be maintained, it records an EVAP leak code and illuminates the check engine light.

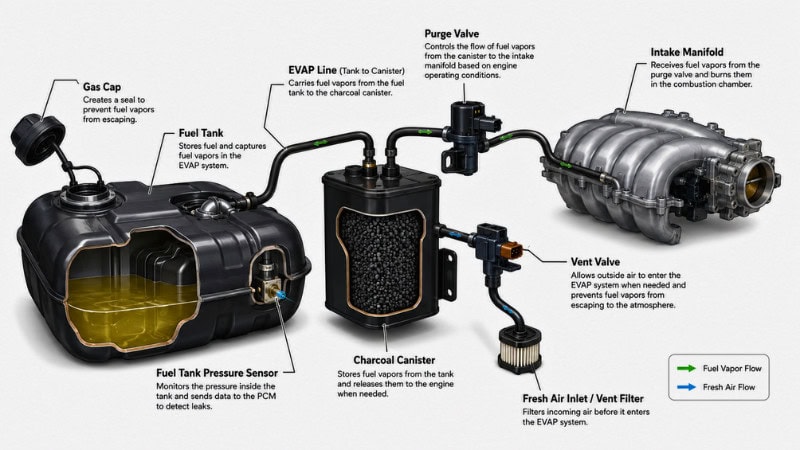

Major EVAP System Components

Gas Cap

The gas cap creates an airtight seal on the fuel tank. A loose, damaged, or worn gas cap is one of the most common causes of EVAP leaks and can trigger diagnostic trouble codes such as P0457.

Charcoal Canister

The charcoal canister stores fuel vapors until the engine is ready to burn them. If the canister becomes clogged, saturated, or damaged, the EVAP system may not function properly.

Purge Valve

The purge valve controls when stored fuel vapors are released into the engine. A faulty purge valve can cause rough idling, hard starting after refueling, and multiple EVAP-related trouble codes.

Vent Valve

The vent valve allows fresh air to enter the EVAP system while maintaining proper pressure. Dirt, moisture, or internal failure can prevent the valve from operating correctly, resulting in leak detection problems.

EVAP Hoses and Lines

Rubber hoses and plastic vapor lines connect all EVAP components. Age, heat, road debris, or physical damage can cause these lines to crack or develop leaks over time.

Fuel Tank Pressure Sensor

This sensor monitors pressure changes inside the fuel tank and helps the ECM detect leaks. If it provides inaccurate readings, the vehicle may falsely report an EVAP leak or fail to identify an actual problem.

Common EVAP Leak Symptoms

An EVAP leak doesn’t always cause noticeable driving problems, especially when the leak is small. In many cases, the first warning is the check engine light. However, depending on the location and severity of the leak, you may experience several other symptoms that indicate the EVAP system isn’t working properly.

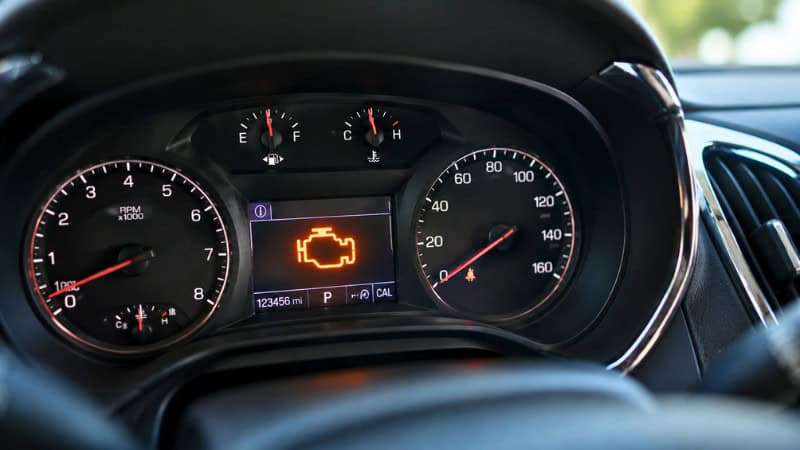

1. Check Engine Light

The check engine light is the most common symptom of an EVAP leak. Since the engine control module continuously monitors the EVAP system for pressure changes, it can detect even a minor leak. When a problem is found, it stores a diagnostic trouble code—such as P0442, P0455, or P0456—and turns on the warning light.

Although the vehicle may continue to drive normally, ignoring the warning can make diagnosing future engine problems more difficult.

2. Fuel Smell Around the Vehicle

A noticeable gasoline odor, especially near the rear of the vehicle or around the fuel filler area, often indicates that fuel vapors are escaping instead of being contained inside the EVAP system. This symptom may become more noticeable after refueling or when the vehicle is parked in a garage.

3. Failed Emissions Test

Because the EVAP system is designed to control fuel vapor emissions, a leak can cause your vehicle to fail a state emissions or smog inspection. Even if the engine runs perfectly, an active EVAP fault code is often enough to result in a failed emissions test.

4. Rough Idle

A leaking or stuck purge valve can allow excessive fuel vapors to enter the intake manifold, disrupting the engine’s air-fuel mixture. As a result, the engine may idle roughly, shake while stopped, or occasionally stall.

5. Hard Starting After Refueling

If the purge valve remains stuck open, excess fuel vapors may flood the engine immediately after filling the gas tank. This can cause extended cranking, difficult starting, or a brief rough idle after the engine starts.

6. Poor Fuel Economy

Although an EVAP leak usually has only a minor effect on fuel consumption, a malfunctioning purge valve or other faulty components can reduce fuel efficiency over time by disrupting the engine’s combustion process.

7. Difficulty Filling the Gas Tank

A clogged charcoal canister or faulty vent valve can prevent air from escaping the fuel tank while refueling. As a result, the gas pump may repeatedly shut off before the tank is full, making refueling slow and frustrating.

8. Engine Hesitation During Acceleration

In some cases, an EVAP system malfunction can cause hesitation, stumbling, or slight surging during acceleration. This symptom is more common when the purge valve is stuck open and allows unmetered fuel vapors into the engine.

9. Hissing Noise Near the Fuel Tank

A damaged hose, loose gas cap, or leaking EVAP component may produce a faint hissing sound as pressure escapes from the sealed system. While this symptom isn’t always present, it can help pinpoint the location of a leak.

10. Excessive Fuel Vapor Around the Vehicle

If the EVAP system cannot properly contain gasoline vapors, you may occasionally notice a stronger-than-normal fuel vapor smell around the vehicle, particularly in hot weather or after long drives.

11. EVAP-Related Diagnostic Trouble Codes

An EVAP leak often triggers one or more OBD-II trouble codes. Common examples include P0440 (general EVAP system malfunction), P0442 (small leak), P0455 (large leak), and P0456 (very small leak). These codes help technicians narrow down the source of the problem.

12. Reduced Engine Performance (Rare)

Most EVAP leaks won’t significantly affect engine performance. However, if the purge valve or another key component fails, you may notice reduced acceleration, occasional stalling, or inconsistent engine performance until the issue is repaired.

What Causes an EVAP Leak?

An EVAP leak can develop when any component in the evaporative emission control system fails to maintain a proper seal. While some problems are caused by normal wear and tear, others result from physical damage, corrosion, or poor maintenance. Identifying the root cause is the first step toward making an accurate and cost-effective repair.

1. Loose or Damaged Gas Cap

A loose, cracked, or worn gas cap is the most common cause of an EVAP leak. Since the gas cap seals the fuel tank, even a slight gap can allow fuel vapors to escape and trigger the check engine light. Fortunately, tightening or replacing the gas cap is often a quick and inexpensive fix.

2. Cracked EVAP Hose

The EVAP system uses several rubber hoses and plastic vapor lines to transport fuel vapors between components. Over time, heat, age, road debris, and vibration can cause these hoses to crack, split, or become disconnected, resulting in vapor leaks.

3. Faulty Purge Valve

The purge valve regulates when fuel vapors stored in the charcoal canister are sent to the engine for combustion. If the valve sticks open or closed, the EVAP system may fail its self-test, causing diagnostic trouble codes and symptoms such as rough idle or hard starting after refueling.

4. Defective Vent Valve

The vent valve allows fresh air into the EVAP system while maintaining the proper pressure balance. Dirt, dust, moisture, or internal electrical failure can prevent the valve from sealing correctly, causing the ECM to detect an EVAP leak.

5. Damaged Charcoal Canister

The charcoal canister stores gasoline vapors until they are burned by the engine. Overfilling the fuel tank, physical impact, or age-related deterioration can damage the canister or contaminate the charcoal inside, reducing its ability to trap fuel vapors.

6. Rusted or Damaged Fuel Tank

Older vehicles, especially those driven in areas where road salt is commonly used during winter, may develop rust holes or corrosion in the fuel tank. Even a tiny opening can allow fuel vapors to escape and create a large EVAP leak.

7. Worn Seals and O-Rings

Various EVAP components rely on rubber seals and O-rings to remain airtight. As these seals age, they can become brittle, crack, or shrink, allowing fuel vapors to leak from connection points throughout the system.

8. Faulty Fuel Tank Pressure Sensor

The fuel tank pressure sensor monitors pressure changes within the EVAP system. If it sends inaccurate readings to the engine control module, the vehicle may falsely detect an EVAP leak or fail to recognize an actual one. Proper diagnosis is important before replacing this sensor, as its symptoms can resemble other EVAP system faults.

Common Causes at a Glance

Understanding the specific cause of an EVAP leak helps avoid unnecessary parts replacement and ensures the problem is fixed correctly the first time.

Can You Drive With an EVAP Leak?

In most cases, yes—you can drive with a small EVAP leak, but it is not something you should ignore for an extended period. Unlike engine or brake problems, an EVAP leak typically doesn’t create an immediate safety risk because the system controls fuel vapors rather than affecting the vehicle’s ability to drive. However, leaving the problem unresolved can lead to additional issues over time.

Is It Safe to Keep Driving?

A minor EVAP leak usually won’t cause your vehicle to break down or leave you stranded. Many drivers continue using their vehicles for weeks without noticing anything more than a check engine light. However, if the leak is caused by a faulty purge valve or another critical EVAP component, you may eventually experience rough idling, hard starting, or reduced fuel efficiency.

If you notice a strong gasoline smell, visible fuel leakage, or persistent engine performance problems, stop driving the vehicle and have it inspected as soon as possible. These symptoms may indicate a more serious issue than a simple EVAP leak.

What Happens If You Ignore an EVAP Leak?

Ignoring an EVAP leak can result in several long-term consequences, including:

When Should You Repair an EVAP Leak?

You should schedule repairs as soon as you notice an EVAP-related warning, especially if:

While an EVAP leak is rarely an emergency, delaying repairs is not recommended. Addressing the problem early is often less expensive and helps keep your vehicle running efficiently while preventing emissions-related issues. If the check engine light appears, scanning the vehicle with an OBD-II scanner is the quickest way to identify the underlying cause before replacing any parts.

Common OBD-II Codes Related to EVAP Leaks

When the engine control module (ECM) detects a problem within the EVAP system, it stores a diagnostic trouble code (DTC) and usually illuminates the check engine light. While these codes don’t always identify the exact failed component, they provide an excellent starting point for diagnosing the issue.

Below are the most common OBD-II codes associated with EVAP leaks.

P0440 – EVAP System Malfunction

P0440 is a general EVAP system code that indicates the ECM has detected a malfunction but cannot identify a specific leak size. This code often requires further testing to locate the faulty component.

P0441 – Incorrect Purge Flow

This code appears when the purge valve does not allow fuel vapors to flow as expected. A faulty purge valve, blocked vapor line, or electrical issue is often responsible.

P0442 – Small EVAP Leak Detected

P0442 indicates a small leak somewhere within the EVAP system. Common causes include a loose gas cap, a cracked EVAP hose, a deteriorated O-ring, or a minor seal failure. Although the leak is small, it should still be repaired to prevent emissions issues.

P0455 – Large EVAP Leak Detected

A P0455 code signals that the EVAP system has a significant leak. In many cases, the gas cap is missing or severely damaged. However, disconnected hoses, broken canisters, or damaged fuel tank components can also trigger this code.

P0456 – Very Small EVAP Leak Detected

This code identifies an extremely small leak that may be difficult to locate without specialized equipment. Mechanics often use a smoke machine to find the source of the leak.

P0457 – Fuel Cap Loose or Off

P0457 specifically indicates that the ECM has detected a problem with the fuel cap seal. Before replacing any parts, make sure the gas cap is tightened properly and inspect it for cracks or damaged sealing surfaces.

P0496 – High Purge Flow During Non-Purge

P0496 usually occurs when the purge valve remains stuck open, allowing fuel vapors to enter the engine when they shouldn’t. Drivers may notice rough idling, hard starting after refueling, or an illuminated check engine light.

Why You Shouldn’t Rely on Trouble Codes Alone

Although OBD-II codes provide valuable diagnostic information, they don’t always identify the exact failed part. For example, a P0442 code doesn’t necessarily mean the gas cap is bad—it could also be caused by a cracked hose, leaking vent valve, or damaged charcoal canister. Performing a complete diagnosis, including a visual inspection and smoke test, helps ensure the correct component is repaired the first time.

How Mechanics Diagnose an EVAP Leak

Diagnosing an EVAP leak can be challenging because many leaks are too small to see with the naked eye. Rather than replacing parts based on guesswork, professional technicians follow a systematic diagnostic process to identify the exact source of the leak. This approach saves time, reduces repair costs, and helps prevent unnecessary parts replacement.

1. Scan the Vehicle for Trouble Codes

The first step is to connect an OBD-II scanner to retrieve stored diagnostic trouble codes and freeze-frame data. These codes help narrow the search by indicating whether the leak is small, large, or related to a specific EVAP component, such as the purge valve or vent valve.

Technicians also check for pending codes and monitor live data to determine whether the EVAP system is operating within normal parameters.

2. Perform a Visual Inspection

Next, the mechanic inspects the entire EVAP system for obvious signs of damage. This includes checking:

Many EVAP problems can be identified during this inspection without the need for advanced testing.

3. Conduct a Smoke Test

A smoke test is one of the most effective methods for locating an EVAP leak. A specialized smoke machine fills the sealed EVAP system with low-pressure smoke. Wherever smoke escapes, there is a leak.

This method is especially useful for detecting tiny leaks that cannot be seen during a visual inspection. Professional repair shops commonly use smoke testing because it provides fast and accurate results.

4. Test Individual EVAP Components

If no external leak is found, technicians test individual components to ensure they function correctly. This may include:

Electrical tests may also be performed using a multimeter or scan tool to confirm that valves receive the correct voltage and respond as commanded by the engine control module.

5. Clear Codes and Verify the Repair

After replacing the faulty component, the mechanic clears all diagnostic trouble codes and performs an EVAP system readiness test. Many vehicles automatically run an EVAP self-test during normal driving.

If no new codes return and the system passes its self-diagnostic checks, the repair is considered successful.

Can You Diagnose an EVAP Leak at Home?

Some EVAP issues, such as a loose gas cap or a cracked hose, can be identified without professional equipment. An inexpensive OBD-II scanner can also help you read trouble codes before visiting a repair shop.

However, locating very small leaks usually requires a smoke machine and specialized diagnostic tools. If the check engine light remains on after replacing obvious components, professional testing is often the fastest and most reliable solution.

How to Fix an EVAP Leak

The correct repair depends on the source of the leak. Some EVAP problems are simple enough for experienced DIYers to fix in a few minutes, while others require specialized tools and professional diagnosis. Before replacing any parts, it’s important to confirm the cause of the leak using an OBD-II scanner or a proper inspection.

Easy DIY Fixes

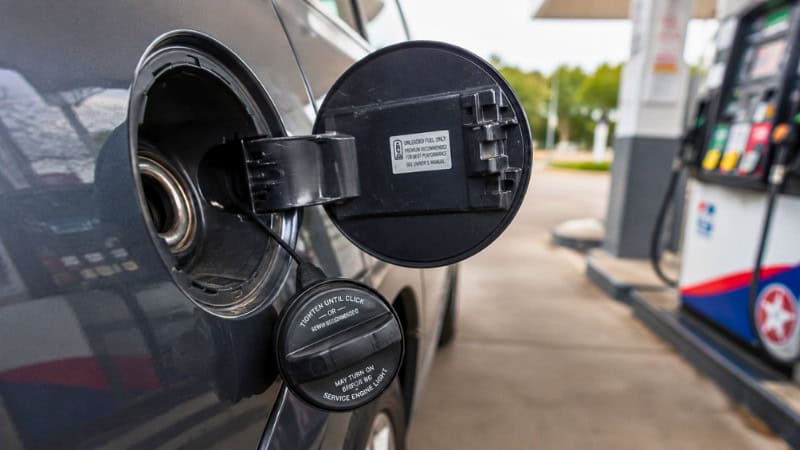

Tighten or Replace the Gas Cap

A loose or damaged gas cap is one of the easiest EVAP problems to fix. First, inspect the cap for cracks, damaged threads, or a worn rubber seal. If it appears to be in good condition, tighten it until you hear several clicks.

If the check engine light remains on after a few drive cycles, replacing the gas cap is an inexpensive next step.

Replace a Cracked EVAP Hose

Rubber EVAP hoses can become brittle and crack over time due to heat and age. Carefully inspect all visible hoses for splits, loose fittings, or disconnected lines. Replacing a damaged hose is usually a straightforward repair that requires only basic hand tools.

Inspect Electrical Connectors

Loose or corroded electrical connectors can prevent the purge valve, vent valve, or pressure sensor from operating correctly. Disconnect the connector, inspect for corrosion or damaged terminals, and reconnect it securely.

Professional Repairs

Replace the Purge Valve

A purge valve that sticks open or closed can trigger several EVAP trouble codes and affect engine performance. Replacing the valve is generally a moderate repair that can often be completed within an hour, depending on the vehicle.

Replace the Vent Valve

If the vent valve fails to seal properly or becomes clogged with dirt and debris, it may need replacement. Many vent valves are mounted near the charcoal canister underneath the vehicle, making access more difficult than the purge valve.

Replace the Charcoal Canister

A damaged or fuel-saturated charcoal canister can no longer store gasoline vapors effectively. Replacement is necessary if the canister cracks, becomes contaminated, or fails diagnostic testing.

Repair or Replace the Fuel Tank

Although uncommon, severe corrosion or physical damage to the fuel tank can create a significant EVAP leak. Depending on the extent of the damage, the tank may be repaired or replaced entirely.

Should You Replace Parts Without Testing?

Replacing EVAP components based solely on a trouble code is rarely a good idea. For example, a P0442 code doesn’t automatically mean the gas cap is faulty. The actual problem could be a cracked hose, leaking vent valve, damaged charcoal canister, or another component within the system.

A proper diagnosis helps identify the exact source of the leak, reducing repair costs and preventing unnecessary parts replacement.

Tips to Avoid Repeat Repairs

After completing the repair:

Taking a few extra minutes to inspect the entire EVAP system can help prevent future leaks and reduce the likelihood of repeated repairs.

EVAP Leak Repair Cost

The cost to repair an EVAP leak can vary significantly depending on the failed component, your vehicle’s make and model, and local labor rates. Fortunately, many EVAP problems are relatively inexpensive to fix, especially if the issue is a loose gas cap or a cracked hose. More complex repairs, such as replacing a charcoal canister or fuel tank, can cost considerably more.

The table below shows the average repair costs in the United States, including parts and labor.

What Affects the Repair Cost?

Several factors influence how much you’ll pay to fix an EVAP leak.

Vehicle Make and Model

Luxury vehicles and certain European models often have higher parts prices and longer labor times than most domestic or Japanese vehicles.

Location

Labor rates vary widely across the United States. Repair shops in large metropolitan areas generally charge more than independent shops in smaller towns.

Leak Location

A loose gas cap can be replaced in minutes, while locating a tiny leak hidden above the fuel tank may require extensive diagnostic work and additional labor.

Parts Quality

Original Equipment Manufacturer (OEM) parts typically cost more than aftermarket alternatives but may provide better fit, durability, and long-term reliability.

Is It Worth Fixing an EVAP Leak?

In most cases, yes. Repairing an EVAP leak early is usually much less expensive than waiting until additional components fail. A simple repair today can help you avoid higher diagnostic costs, repeated check engine lights, and failed emissions inspections in the future.

Even if your vehicle appears to drive normally, fixing the problem promptly helps maintain proper emissions performance and prevents fuel vapors from escaping into the environment.

How to Prevent Future EVAP Leaks

Although not every EVAP leak can be avoided, regular maintenance and good driving habits can significantly reduce the risk of future problems. Many EVAP system failures develop gradually as components age, making routine inspections an effective way to catch minor issues before they become expensive repairs.

Tighten the Gas Cap Properly

Always tighten the gas cap until you hear several clicks after refueling. A loose gas cap is one of the leading causes of EVAP leak codes and can trigger the check engine light within a few driving cycles.

If the gas cap no longer seals properly or the rubber gasket appears cracked or worn, replace it with a high-quality replacement designed for your specific vehicle.

Avoid Overfilling the Fuel Tank

Continuing to pump fuel after the nozzle automatically shuts off can force liquid gasoline into the charcoal canister. Over time, this can saturate the canister and reduce its ability to store fuel vapors, eventually leading to EVAP system failures.

Stopping when the pump clicks off helps protect the EVAP system and prevents unnecessary damage.

Inspect EVAP Hoses Regularly

Heat, vibration, and age can cause rubber hoses to dry out and crack. During routine maintenance, inspect visible EVAP hoses and vapor lines for:

Replacing a worn hose early is far less expensive than diagnosing a persistent EVAP leak later.

Replace Worn Seals and Components

Rubber seals, O-rings, and plastic fittings naturally deteriorate over time. If you’re already replacing nearby components during another repair, inspect these seals and replace any that show signs of wear.

Preventive replacement can help maintain an airtight EVAP system and reduce the likelihood of future leaks.

Address the Check Engine Light Promptly

Never ignore a check engine light, even if your vehicle seems to drive normally. Reading the stored trouble codes early allows you to identify small EVAP problems before they develop into more costly repairs.

Using an OBD-II scanner or visiting a qualified repair shop can save both time and money by catching problems early.

Schedule Routine Vehicle Maintenance

Following your vehicle manufacturer’s recommended maintenance schedule helps ensure the entire fuel and emissions system remains in good condition. During routine service visits, ask your technician to inspect the EVAP system if your vehicle has high mileage or has previously experienced emissions-related issues.

Preventive Maintenance Checklist

To reduce the risk of future EVAP leaks:

Taking these simple preventive steps can extend the life of your EVAP system, reduce repair costs, and help keep your vehicle operating efficiently while meeting emissions standards.

Frequently Asked Questions

Can an EVAP Leak Cause a Rough Idle?

Yes, but only in certain situations. A simple leak, such as a loose gas cap or a small crack in an EVAP hose, typically won’t affect engine performance. However, if the purge valve is stuck open, excess fuel vapors can enter the intake manifold, disrupting the air-fuel mixture and causing a rough idle, hesitation, or even occasional stalling.

Will an EVAP Leak Clear Itself?

No. An EVAP leak will not repair itself. In some cases, the check engine light may turn off temporarily if the leak is intermittent, but the underlying problem remains. The faulty component must be repaired or replaced before the EVAP system can operate correctly.

Is an EVAP Leak Expensive to Fix?

Not always. Many EVAP leaks are inexpensive to repair, especially if the issue is a loose gas cap or a cracked hose. More complex repairs involving the charcoal canister, fuel tank, or multiple EVAP components can be significantly more expensive due to increased parts and labor costs.

Does an EVAP Leak Affect Fuel Economy?

A minor EVAP leak usually has little or no impact on fuel economy. However, if the leak is caused by a malfunctioning purge valve or another component that affects the engine’s air-fuel mixture, you may notice a slight decrease in fuel efficiency over time.

Can a Bad Gas Cap Trigger an EVAP Code?

Yes. A loose, damaged, or worn gas cap is one of the most common causes of EVAP-related trouble codes. It can trigger codes such as P0457, P0442, or P0455 because the fuel tank is no longer properly sealed.

How Long Can You Drive With an EVAP Leak?

Most vehicles can continue operating with a minor EVAP leak for a period of time, but delaying repairs is not recommended. Driving with an unresolved EVAP leak can lead to failed emissions inspections, persistent check engine lights, and potentially more expensive repairs if the problem worsens.

Conclusion

An EVAP leak is one of the most common reasons a vehicle’s check engine light turns on, but it doesn’t always indicate a major mechanical problem. In many cases, the issue is caused by something as simple as a loose gas cap or a worn EVAP hose. However, other components—including the purge valve, vent valve, charcoal canister, or fuel tank pressure sensor—can also fail and trigger EVAP-related trouble codes.

Recognizing the early symptoms, understanding the common causes, and performing a proper diagnosis can help you resolve the problem before it becomes more costly. While many minor EVAP issues are relatively inexpensive to repair, ignoring the warning signs may result in failed emissions tests, ongoing fuel vapor leaks, and unnecessary diagnostic expenses.

If your vehicle’s check engine light is on and you suspect an EVAP leak, start by scanning for OBD-II trouble codes and inspecting the gas cap and visible EVAP components. When the source of the leak isn’t immediately obvious, a professional smoke test remains the most accurate way to identify the problem. Addressing the issue promptly will help restore your vehicle’s emissions system, improve long-term reliability, and keep it running as efficiently as intended.
