When you hit the brakes, you expect a smooth and safe stop. If your car shakes, makes noise, or feels dangerous instead, your brake rotors may be to blame. These parts of your vehicle’s braking system work hard every time you drive and wear out over time. Knowing how to spot bad brake rotors is crucial for safety and to avoid costly repairs.
This guide covers the warning signs of failing brake rotors, the science behind their wear, and actionable steps for inspection and addressing issues. Whether you are a DIY mechanic or simply want to be informed before a repair shop visit, this article provides the essential knowledge to keep your vehicle stopping safely.
Understanding the Role of Brake Rotors
Before diving into the symptoms of bad brake rotors, it’s helpful to know what they do. In a disc brake system, the brake rotor (or brake disc) is a heavy metal disc attached to the wheel hub. When you press the brake pedal, hydraulic pressure forces the calipers to squeeze the brake pads against the spinning rotor. The friction slows the rotor, which then slows the wheel and stops the car.
This process relies on friction, which produces heat. Brake rotors are designed to cool quickly, often with internal vanes or drilled slots for high performance. But the repeated heating, cooling, and friction cause wear. The rotor’s surface may grow uneven, warped, or too thin over time, reducing your stopping power.
The Most Common Signs of Bad Brake Rotors
Your vehicle alerts you when issues arise, especially with brake rotors. Noticing these warning signs can prevent dangerous situations on the road.
1. Vibration or Pulsation in the Brake Pedal
One of the most frequent and obvious signs of a bad brake rotor is a noticeable vibration or pulsation when you apply the brakes. If your brake pedal feels like it is bouncing back at your foot, or if the steering wheel shakes violently during a stop, your rotors are likely the cause.
This issue is often called ‘warped rotors,’ but the technical term is Disc Thickness Variation (DTV). DTV happens when the rotor surface wears unevenly, creating high and low spots. When brake pads clamp onto this uneven surface, they bounce over high spots. This vibration travels through the hydraulic system into the brake pedal. Uneven wear can result from excessive heat, improper lug-nut torque, or brake pad buildup on the rotor.
2. Squealing, Squeaking, or Grinding Noises
Brakes should operate relatively quietly. If you start hearing high-pitched squealing or squeaking noises when you press the pedal, it is often an early indicator that your brake pads are wearing thin. Many brake pads have built-in wear indicators—small metal tabs that intentionally scrape against the rotor to warn you that it is time for a replacement.
If the squeak becomes a harsh, metallic grinding noise, the problem is serious. Grinding means the brake pads have completely worn away, so the pad’s metal backing contacts the rotor directly. This damage quickly ruins the rotor, creating deep grooves. Both the pads and rotors need immediate replacement.
3. Increased Stopping Distance
If your car takes longer to stop or the pedal feels mushy and less responsive, your brakes are not working well. Old brake fluid or a faulty brake booster can cause this, but worn rotors are a common reason, too.
Thin or glazed rotors from heat lose friction with the brake pads. This loss, called brake fade, means your car takes longer to stop. This creates a safety risk, especially in emergencies.
4. Visible Grooves and Score Marks
Sometimes, the signs of a bad brake rotor are visible to the naked eye. If your vehicle has open-spoke alloy wheels, you can often inspect the rotor’s outer surface without removing the wheel. A healthy rotor should have a relatively smooth, even surface.
Seeing deep, circular grooves or score marks means damage. These often result from worn pads, trapped debris, or abrasive pads. Minor scoring can sometimes be fixed, but deep grooves mean the rotor needs replacing.
5. Excessive Rust and Corrosion
A light surface rust on rotors is normal, especially after rain or humidity. Cast-iron or steel rotors are susceptible to corrosion, particularly in areas where road salt is common in winter.
Deeply penetrating rust can weaken the rotor’s strength. Excessive rust on the edges or cooling vanes also slows heat loss, which can cause overheating and early failure.
6. Blue Discoloration
A blue tint on your rotors shows exposure to extreme heat. The metal may become brittle and crack. Once a rotor turns blue, it is unsafe and should be replaced.
Aggressive driving, towing heavy loads, or a sticking brake caliper often cause overheating. Excessive heat turns the rotor blue, weakening it. Replace any blue rotor immediately for safety.
How to Inspect Your Brake Rotors
If you suspect your rotors are failing based on these symptoms, inspect them thoroughly. While professionals can perform diagnostics, you can also do initial checks at home.
The Visual Inspection
Start by parking your car on a level surface, engaging the parking brake, and safely lifting the vehicle with a jack and jack stands. Remove the wheel to get a clear view of the brake assembly.
Examine the rotor’s surface. Lightly run your fingernail across the metal. If it catches deep grooves, the rotor is badly scored. Look for visible cracks, especially at the center hub or outer edge. Cracks require immediate replacement. Also check for heavy rust or dark hot spots, which show uneven heating.

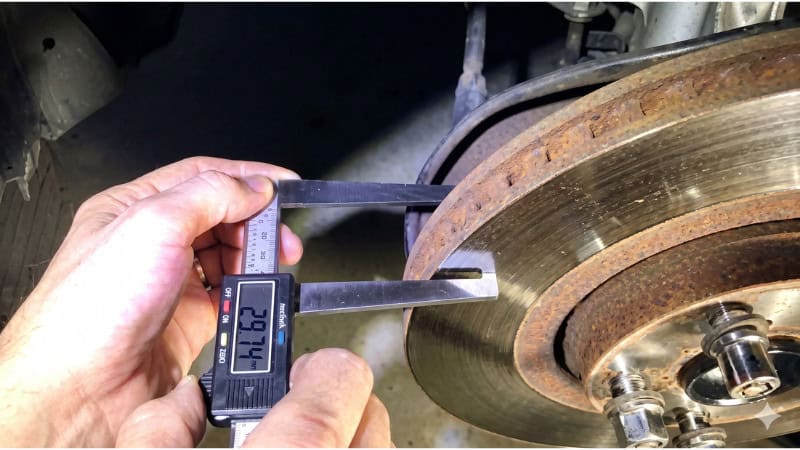

Measuring Rotor Thickness
Every brake rotor has a minimum safe thickness, set by the manufacturer. This specification ensures the rotor can absorb heat and withstand the caliper’s force. You can usually find this ‘Min Thickness’ stamped on the rotor’s edge or hub.
Use a brake rotor micrometer to check thickness. Tape measures or rulers aren’t accurate enough. Measure at several points around the rotor. If any spot is below the minimum thickness, the rotor is unsafe and must be replaced.

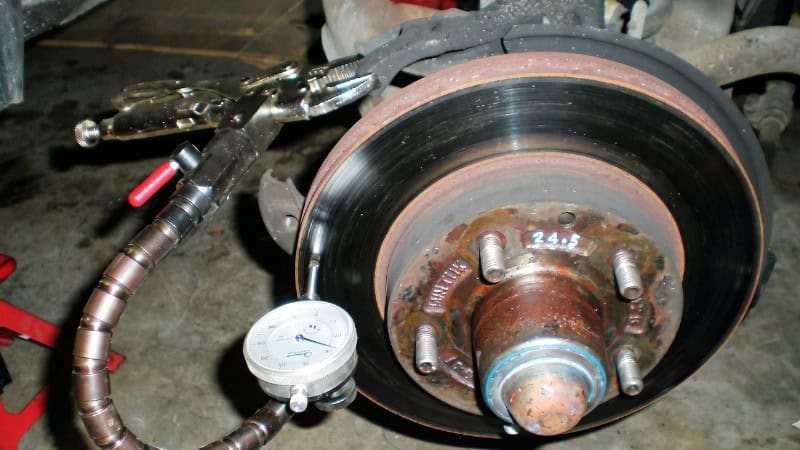

Checking for Lateral Runout
Lateral runout is another term for a warped or wobbly rotor. Mechanics use a dial indicator mounted to the suspension, with its tip resting against the rotor. As you turn the rotor by hand, the indicator shows any surface deviation.
The dial indicator reveals if the rotor is perfectly flat. Runout above the allowable limit, which is small, causes pedal pulsation. This test needs special tools, but it is the best way to check for DTV.
Once you’ve identified a potential problem with your brake rotors through inspection, the next important decision is whether to repair or replace them. Understanding your options will help you make the safest and most cost-effective choice.
When a brake rotor is deemed “bad,” you generally have two options: resurfacing (also known as turning or machining) or complete replacement. The right choice depends on the rotor’s condition and the specific recommendations for your vehicle.
Resurfacing the Rotors
Resurfacing removes the rotor from the car and places it on a brake lathe. The lathe shaves off a thin layer from both sides, making the surface smooth and flat.
You can resurface a rotor only if it’s thick enough to stay above the minimum safe limit. Resurfacing removes minor damage and small warps. It is affordable if the rotor remains structurally sound.
Replacing the Rotors
- Replace brake rotors if they are below the manufacturer’s minimum thickness.
- Replace rotors with deep grooves that can’t be removed by machining.
- Replace rotors that are visibly cracked or badly warped.
- They have heavy, structural rust or blue heat discoloration.
Furthermore, many modern vehicles are equipped with lightweight, thinner rotors designed to save weight and improve fuel efficiency. These rotors often lack sufficient material for resurfacing, making replacement the standard procedure when installing new brake pads.
The Importance of Replacing Pads and Rotors Together
A common question among drivers is whether they can replace just the brake pads and leave the old rotors in place. While it is technically possible, it is rarely recommended.
Brake pads and rotors wear together, forming a matched friction surface. If you install perfectly flat new brake pads against an old, uneven rotor, the pads will only make partial contact. This leads to poor braking performance, squealing noises, and rapid, uneven wear of the new pads. For optimal safety and longevity, best practices dictate that you should always either resurface or replace the rotors when installing new brake pads.
Maintaining Your Brake System for Longevity
While brake rotors are wear items that will eventually need replacement, proper maintenance and driving habits can significantly extend their lifespan.
Avoid Aggressive Braking: Anticipate stops and apply the brakes smoothly rather than slamming on them at the last second. This reduces heat buildup and minimizes wear.
Don’t Ride the Brakes: When driving downhill, use engine braking (shifting to a lower gear) instead of constantly riding the brake pedal, which can quickly overheat and warp the rotors.
Choose Quality Parts: When it is time for a replacement, invest in high-quality rotors and brake pads. Ceramic brake pads, for example, generate less abrasive dust and are generally gentler on rotors than cheap semi-metallic pads.
Ensure Proper Installation: Whenever the wheels are removed, tighten the lug nuts to the manufacturer’s specified torque using a torque wrench. Uneven or excessive torque can actually warp the brake rotors over time.
Regular Inspections: Have your entire brake system, including the brake fluid, calipers, and hoses, inspected by a professional at least once a year or whenever you have your tires rotated.
Conclusion
Your vehicle’s braking system is its most critical safety feature, and the brake rotors play a starring role in bringing you to a safe halt. By learning how to tell if brake rotors are bad—whether through feeling a pulsation in the pedal, hearing a grinding noise, or visually spotting deep grooves—you can address issues before they compromise your safety.
Remember that ignoring the signs of failing rotors will not only lead to longer stopping distances and a terrifying driving experience, but it can also cause extensive damage to other components like the brake calipers and wheel hub assembly. When in doubt, consult a trusted mechanic, prioritize high-quality replacement parts, and never compromise on automotive safety.
