How to Check a Crankshaft Position Sensor (CKP Sensor): Step-by-Step Guide

The crankshaft position sensor (CKP sensor) is one of the most important components of engine management in modern vehicles. It monitors the crankshaft position and rotational speed and sends that information to the engine control module (ECM). The ECM uses this data to control ignition and fuel injection timing, as well as engine performance.

When the CKP sensor starts failing, your engine can experience serious drivability problems. Common symptoms of a bad crankshaft position sensor include engine stalling, hard starting, rough idle, misfires, poor acceleration, and an illuminated check engine light. In some cases, the engine may crank normally but refuse to start because the ECM is no longer receiving a proper crankshaft signal.

In this guide, you’ll learn how to check a crankshaft position sensor using a scan tool and a multimeter. We’ll also cover common CKP sensor symptoms, testing procedures, sensor locations, trouble codes, and the most effective ways to diagnose the problem like a professional mechanic.

A crankshaft position sensor can be checked by scanning for trouble codes, monitoring live RPM data, and testing the sensor’s resistance or voltage output with a digital multimeter. If the CKP sensor fails, you may notice stalling, no-start conditions, engine misfires, or poor performance.

What Is a Crankshaft Position Sensor?

The crankshaft position sensor, commonly called the CKP sensor, is an electronic engine management component that tracks the crankshaft’s position and rotational speed. Nearly every modern gasoline and diesel engine relies on this sensor to keep the engine running properly.

The CKP sensor constantly communicates with the engine control module (ECM) or powertrain control module (PCM). Without accurate crankshaft data, the computer cannot correctly manage spark timing or fuel delivery. That’s why even a small CKP sensor problem can cause major drivability issues.

What Does the CKP Sensor Do?

The main job of the crankshaft position sensor is to monitor crankshaft rotation and send real-time information to the vehicle’s computer. The ECM uses this signal to determine:

As the crankshaft rotates, the sensor reads a reluctor wheel (tone ring) mounted to it. The sensor then converts this movement into an electrical signal that the ECM can understand.

When the ECM loses this signal, the engine may:

In many vehicles, the engine will not start at all if the CKP sensor completely fails.

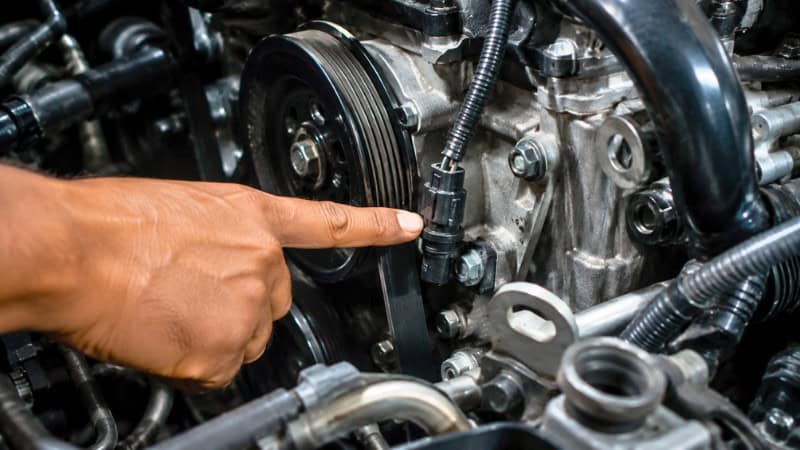

Where Is the Crankshaft Position Sensor Located?

The location of the crankshaft position sensor varies depending on the engine design and vehicle manufacturer. However, it’s usually mounted close to the crankshaft or reluctor wheel.

Common CKP sensor locations include:

On some transverse-mounted engines, access can be difficult because the sensor may sit behind engine mounts or near the firewall.

If you’re unsure where the sensor is located on your vehicle, checking a repair manual or manufacturer service diagram can save a lot of time.

How the CKP Sensor Works With the ECU

The CKP sensor and the engine control unit work together to keep the engine operating efficiently. As the crankshaft spins, the sensor generates a signal that tells the ECM exactly where the crankshaft is positioned during each combustion cycle.

The ECM uses this information to:

Modern vehicles use either:

Magnetic sensors create an AC voltage signal as metal teeth pass by the sensor tip. Hall effect sensors use a digital voltage signal and typically require a reference voltage from the ECM.

If the ECM receives inaccurate or intermittent data, engine timing becomes unstable. This often leads to rough running conditions, hesitation, or complete engine shutdown.

Symptoms of a Bad Crankshaft Position Sensor

A failing crankshaft position sensor can cause a wide range of engine performance problems. Since the CKP sensor controls ignition timing and fuel injection signals, even a weak or intermittent sensor can affect how the engine starts, idles, accelerates, and runs overall.

In many cases, the symptoms begin intermittently before becoming more severe over time. The engine may run fine one day and suddenly refuse to start the next.

Here are the most common symptoms of a bad crankshaft position sensor.

Check Engine Light Comes On

One of the first warning signs of a faulty CKP sensor is an illuminated check engine light. When the engine control module detects missing or irregular crankshaft signal data, it stores a diagnostic trouble code and turns on the warning light.

Common CKP sensor trouble codes include:

While the check engine light alone doesn’t confirm a bad CKP sensor, scanning the vehicle with an OBD2 scanner can help narrow down the problem quickly.

Engine Cranks But Won’t Start

A bad crankshaft position sensor can easily cause a no-start condition. The engine may crank normally, but the ECM will not trigger spark or fuel injector pulses if it cannot detect crankshaft position.

This is one of the most common symptoms of complete CKP sensor failure.

In some cases:

Heat-related failure of the CKP sensor is extremely common on high-mileage vehicles.

Random Engine Stalling

Intermittent stalling is another major sign of a failing CKP sensor. If the crankshaft signal suddenly disappears while driving, the ECM may instantly shut off fuel injection and ignition timing.

This can cause:

The engine may restart immediately or take several minutes.

Rough Idle or Misfires

When the CKP sensor sends inaccurate timing information, the engine may struggle to maintain smooth combustion.

This often causes:

Because ignition timing becomes unstable, the engine may feel rough, especially under load or during cold starts.

Poor Acceleration and Power Loss

A weak crankshaft signal can confuse the ECM and affect ignition advance timing. This may cause noticeable power loss and sluggish throttle response.

Drivers often notice:

Some vehicles may also enter limp mode to protect the engine from further damage.

Hard Starting Problems

A failing CKP sensor can make it difficult to start the engine, especially when it’s hot.

You may experience:

As the sensor deteriorates, the starting problem usually becomes more frequent.

Tachometer Not Working Properly

The tachometer relies on engine RPM information, which is partially calculated from the crankshaft position sensor signal.

A failing CKP sensor may cause:

If the tachometer behaves erratically along with stalling or no-start issues, the CKP sensor becomes a strong suspect.

Tools Needed to Check a CKP Sensor

Before testing a crankshaft position sensor, gather the right tools. Using proper diagnostic equipment will make the testing process faster, safer, and more accurate.

Some CKP sensor problems can be diagnosed in minutes with a scan tool, while others require electrical testing with a digital multimeter. Having both tools available gives you the best chance of correctly identifying the problem.

Here are the most important tools you’ll need to check a crankshaft position sensor.

Digital Multimeter

A digital multimeter is one of the most important tools for testing a CKP sensor. It allows you to measure:

Most magnetic CKP sensors can be tested using resistance and AC voltage measurements. Hall effect sensors usually require voltage testing instead.

When choosing a multimeter, make sure it can accurately measure:

An automotive-grade multimeter typically provides more reliable readings than a cheap basic unit.

OBD2 Scanner

An OBD2 scanner helps identify trouble codes and monitor live engine data related to the crankshaft position sensor.

A scan tool can:

One of the easiest ways to spot a failed CKP sensor is by checking live RPM while cranking the engine. If the RPM reading stays at zero, the ECM may not be receiving a crankshaft signal.

Professional bidirectional scan tools provide even more advanced diagnostic functions, but many affordable scanners can still handle basic CKP diagnostics.

Basic Hand Tools

Depending on the vehicle, you may need several hand tools to access the crankshaft position sensor.

Common tools include:

Some CKP sensors are easy to reach from the top of the engine, while others require access from underneath the vehicle.

In tight engine bays, long extensions and flexible ratchets can save a lot of frustration.

Repair Manual or Wiring Diagram

A repair manual or wiring diagram is extremely helpful when diagnosing CKP sensor problems.

It provides:

Because sensor specifications vary between manufacturers, always compare your readings to factory specs whenever possible.

Using incorrect test values can easily lead to misdiagnosis.

Safety Gloves and Flashlight

Safety equipment is often overlooked during electrical diagnostics, but it’s still important.

A good flashlight helps inspect:

Mechanic gloves also protect your hands from:

If you’re working underneath the vehicle, always use proper jack stands instead of relying only on a hydraulic jack.

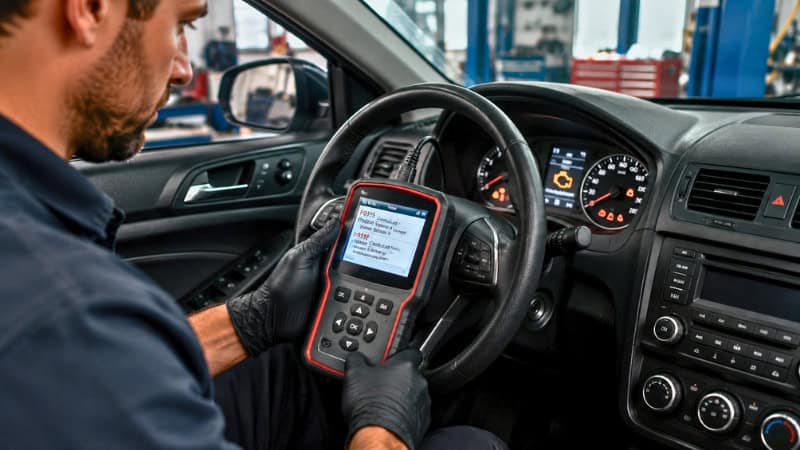

How to Check a CKP Sensor With a Scan Tool

Using an OBD2 scan tool is one of the fastest and easiest ways to diagnose a crankshaft position sensor problem. Modern vehicles constantly monitor the CKP sensor signal, and when the ECM detects an issue, it usually stores a diagnostic trouble code.

A scan tool can help you:

In many cases, checking live engine data during cranking can quickly tell you whether the crankshaft position sensor is working properly.

Scan for Trouble Codes

Start by connecting the OBD2 scanner to the vehicle’s diagnostic port, usually located underneath the dashboard near the steering column.

Follow these steps:

Even if the check engine light is off, pending codes may still be stored in memory.

If multiple sensor codes appear together, inspect the wiring harness carefully, as voltage or ground issues can affect several sensors simultaneously.

Common CKP Sensor Codes

Several trouble codes are commonly associated with crankshaft position sensor problems.

Here are the most common ones:

These codes do not always mean the sensor itself is bad. In some cases, the real problem may involve:

That’s why additional testing is important before replacing parts.

Check Live RPM Data While Cranking

One of the best ways to test a CKP sensor with a scan tool is by monitoring live RPM data while cranking the engine.

Here’s how:

A healthy CKP sensor typically shows RPM movement during cranking, often around:

If the RPM stays at zero while cranking, the ECM may not be receiving a crankshaft signal.

This is one of the strongest indicators of a failed CKP sensor or signal circuit problem.

Signs the Sensor Is Not Sending a Signal

Several scan tool symptoms may indicate the crankshaft position sensor is failing or not communicating properly.

Common warning signs include:

If the signal disappears after the engine warms up, heat-related sensor failure becomes highly likely.

Professional mechanics often combine live scan data with multimeter testing to confirm the diagnosis before replacing the sensor.

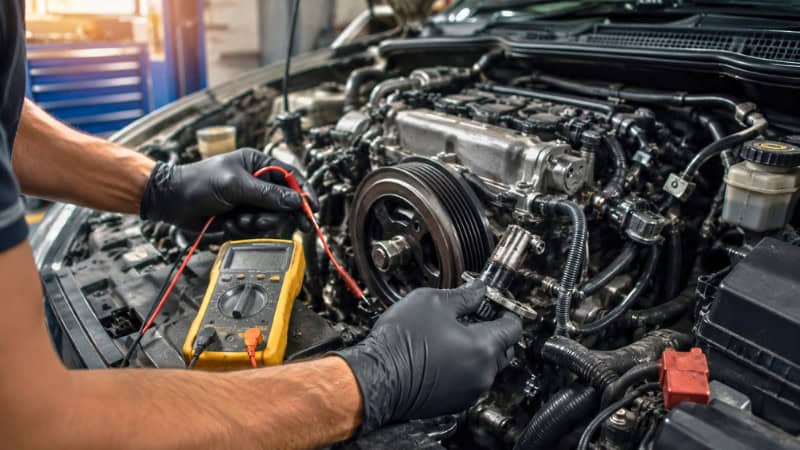

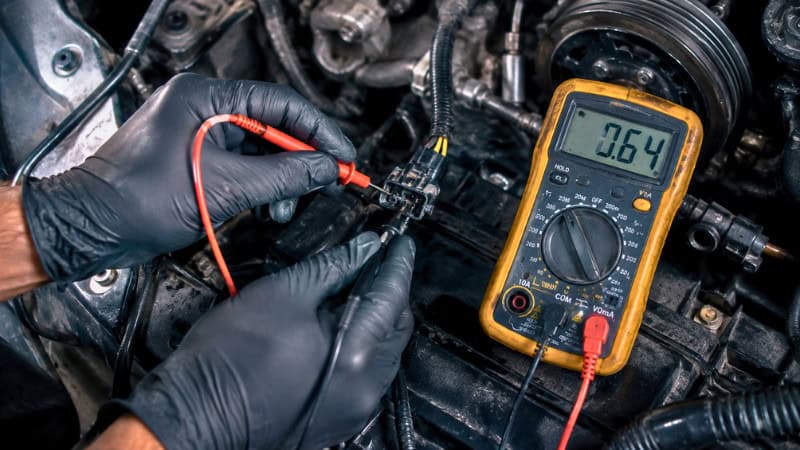

How to Check a CKP Sensor With a Multimeter

A digital multimeter is one of the most reliable tools for testing a crankshaft position sensor. It allows you to check sensor resistance, voltage output, ground circuits, and wiring continuity to determine whether the sensor is working properly.

Depending on the vehicle, your CKP sensor may be:

Both types require slightly different testing procedures, but the basic diagnostic process remains similar.

Before testing, always inspect the sensor connector and wiring for visible damage, oil contamination, corrosion, or loose terminals.

Step 1 — Turn Off the Engine

Start by shutting the engine off completely and removing the ignition key.

For safety:

Never test wiring near moving engine parts while the engine is running unless the procedure specifically requires it.

Step 2 — Disconnect the Sensor Connector

Locate the crankshaft position sensor, then carefully unplug its electrical connector.

Inspect the connector for:

Many CKP sensor issues are actually caused by damaged connectors rather than the sensor itself.

If oil or dirt is present inside the connector, clean it using electrical contact cleaner before continuing the diagnosis.

Step 3 — Check Sensor Resistance

For magnetic-type CKP sensors, resistance testing is one of the first diagnostic checks.

Set the multimeter to the ohms (Ω) setting and place the probes across the sensor terminals.

A healthy sensor typically falls within the manufacturer’s specified resistance range.

Many magnetic CKP sensors measure somewhere between:

However, specifications vary widely between vehicles, so always compare readings with factory service information.

If the reading shows:

The sensor may be internally damaged.

Hall-effect sensors are usually not accurately tested using resistance measurements alone.

Step 4 — Compare Readings With Factory Specs

Resistance values only become useful when compared to manufacturer specifications.

Even if the sensor produces some resistance, it may still fall outside the acceptable operating range.

Always check:

Using incorrect specifications can easily lead to unnecessary sensor replacement.

If the sensor resistance is significantly outside the recommended range, replacement is usually necessary.

Step 5 — Test Voltage Signal While Cranking

Voltage testing helps verify whether the CKP sensor produces an active signal while the engine cranks.

For magnetic sensors:

A working magnetic CKP sensor usually generates a small AC voltage signal during cranking.

Typical readings may range from:

For Hall effect sensors:

If no signal voltage appears, the problem may involve:

Step 6 — Inspect Wiring and Connector Damage

If the sensor tests good but the engine still has CKP-related symptoms, inspect the entire wiring circuit carefully.

Look for:

CKP sensor wiring often runs close to:

Heat and vibration can easily damage the harness over time.

Wiggle-testing the wiring while monitoring scan tool RPM data can sometimes reveal intermittent connection problems that are otherwise difficult to find.

How to Test a Magnetic CKP Sensor

Magnetic crankshaft position sensors are commonly used on older and many modern vehicles. These sensors generate their own AC voltage signal as the reluctor wheel passes by the sensor tip.

Unlike Hall effect sensors, magnetic CKP sensors do not require an external power supply from the ECM. Instead, they create an electrical signal through magnetic induction.

Testing a magnetic crankshaft position sensor usually involves:

Because magnetic sensors are sensitive to heat, vibration, and metal debris buildup, they often fail intermittently before completely stopping.

Resistance Testing Procedure

Resistance testing is one of the quickest ways to check the internal condition of a magnetic CKP sensor.

Follow these steps:

A healthy magnetic sensor typically falls within manufacturer specifications.

Many sensors measure between:

However, exact specifications vary by vehicle.

If the multimeter shows:

The sensor may have an internal short or open circuit.

Keep in mind that some sensors can still pass resistance testing while failing under operating temperatures.

AC Voltage Output Test

The AC voltage test is one of the most effective ways to confirm whether the magnetic CKP sensor is producing a signal during engine cranking.

Here’s how to perform the test:

As the crankshaft rotates, the reluctor wheel passes the magnetic sensor tip, generating an alternating current voltage.

A properly functioning sensor usually produces:

Some vehicles may produce higher readings depending on engine speed and sensor design.

If the meter shows little or no voltage output while cranking, possible causes include:

This test is often more reliable than resistance testing because it checks real signal generation under operating conditions.

Common Reading Ranges

Magnetic CKP sensor readings vary between manufacturers, but these general ranges are commonly seen:

Always compare your results to factory service specifications whenever possible.

If readings fluctuate significantly or disappear as the engine warms up, the sensor may be experiencing internal heat failure.

Heat-related CKP sensor issues are extremely common because engine temperature affects the internal magnetic winding resistance over time.

Signs of a Weak Magnetic CKP Sensor

A magnetic CKP sensor doesn’t always fail completely right away. In many cases, the signal weakens or becomes unstable before total failure.

Common signs of a weak magnetic CKP sensor include:

Metal shavings stuck to the magnetic sensor tip can also weaken the signal and cause drivability issues.

Carefully cleaning the sensor tip may sometimes restore proper operation if contamination is the only problem.

How to Test a Hall Effect CKP Sensor

Many modern vehicles use Hall effect crankshaft position sensors instead of magnetic sensors. Unlike magnetic sensors, Hall effect sensors require an external voltage supply from the engine control module to operate.

These sensors produce a digital on-and-off signal that the ECM uses to monitor crankshaft position and engine speed with greater accuracy.

Because Hall-effect sensors operate differently, their testing procedures differ from those of traditional magnetic CKP sensors.

The three main tests include:

Using a digital multimeter is usually enough for basic diagnosis, although an oscilloscope provides the most accurate waveform analysis.

Checking Reference Voltage

A Hall effect crankshaft position sensor typically receives a reference voltage from the ECM.

Most systems use:

To test reference voltage:

A healthy circuit should display close to the specified reference voltage.

If there is no voltage present, possible causes include:

Always check wiring diagrams to identify the correct terminals before testing.

Ground Circuit Inspection

A poor ground connection can cause inaccurate sensor signals or complete sensor failure.

To inspect the ground circuit:

A good ground circuit should show battery voltage during this test.

You can also perform a continuity test between the sensor ground and chassis ground with the battery disconnected.

Signs of a bad ground include:

Ground-related electrical issues are often overlooked during CKP diagnostics.

Signal Wire Testing

The signal wire carries crankshaft position information from the sensor to the ECM.

To test the signal wire:

A working Hall effect sensor usually switches voltage rapidly between:

Depending on the vehicle, the signal may fluctuate between:

Because the signal changes very quickly, some multimeters may not capture the switching accurately. An oscilloscope provides a clearer waveform pattern if available.

If no signal activity appears during cranking, the problem may involve:

What a Good Hall Sensor Reading Looks Like

A healthy Hall effect CKP sensor should have:

During cranking, the ECM should also detect RPM data on the scan tool.

Common signs of a properly working Hall effect sensor include:

If the signal becomes unstable after the engine heats up, the sensor may be failing internally due to heat exposure.

Intermittent Hall-effect sensor failures are especially common on high-mileage engines exposed to constant vibration and high engine heat.

Common Causes of CKP Sensor Failure

Crankshaft position sensors are designed to last for many years, but they can eventually fail due to heat, vibration, contamination, or electrical problems. In some cases, the sensor itself is not the actual issue — damaged wiring or a faulty reluctor wheel may produce similar symptoms.

Understanding the most common causes of CKP sensor failure can help prevent repeated breakdowns and unnecessary parts replacement.

Here are the most frequent reasons a crankshaft position sensor stops working properly.

Heat Damage

Heat is a leading cause of crankshaft position sensor failure.

Because the sensor is usually mounted close to:

It is constantly exposed to extreme temperatures
